ABR-Series High Precision Gearbox

SKU : apg002

Price

0.00 THB

Quantity to buy
Total 0.00 THB

Do not have enough stock

Out of stock

OVERVIEW

Output torque

T2N : 9 Nm - 2000 Nm

Ratios:

1-stage :3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 14 / 20

2-stage :15 / 20 / 25 / 30 / 35 / 40 / 45 / 50 / 60 / 70 / 80 / 90 / 100 / 120 / 140 / 160 / 180 / 200

*Only ABR042 2-stage offers 15,20 option

Low backlash

1-stage : ≦2arcmin / ≦4arcmin / ≦6arcmin

2-stage : ≦4arcmin / ≦7arcmin / ≦9arcmin

High efficiency

1-stage : ≧ 95%

2-stage : ≧ 92%

Easy mount

Low noise


SIZE

ABR042 / ABR060 / ABR090 / ABR115 / ABR142 / ABR180 / ABR220

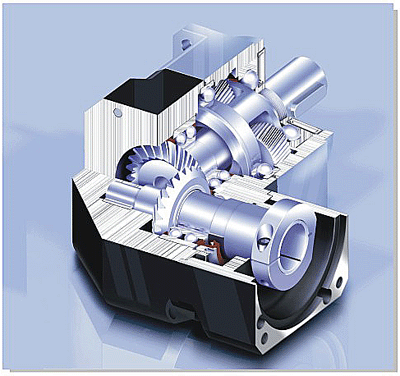

1.Higher output torque rating by using spiral bevel gear design. 30% more than straight bevel gear.

2.Allows input speeds up to 8 times than with straight bevel gearing.

3.Improved load sharing through precision tooth design and longer service life.

4.Ground gears verified with sophisticated software, ensures smooth, quiet operation with reduced backlash(<=2arcmin)

5.High tensile low weight single piece aluminum alloy housing for highest stiffness.6.Maintenance free lifetime lubrication.

7.Patented sealing design for high speed and continuous running.

8.High efficiency up to 95%. Low noise level down to 61 dB.

9.Most ratios available from 3~200.
